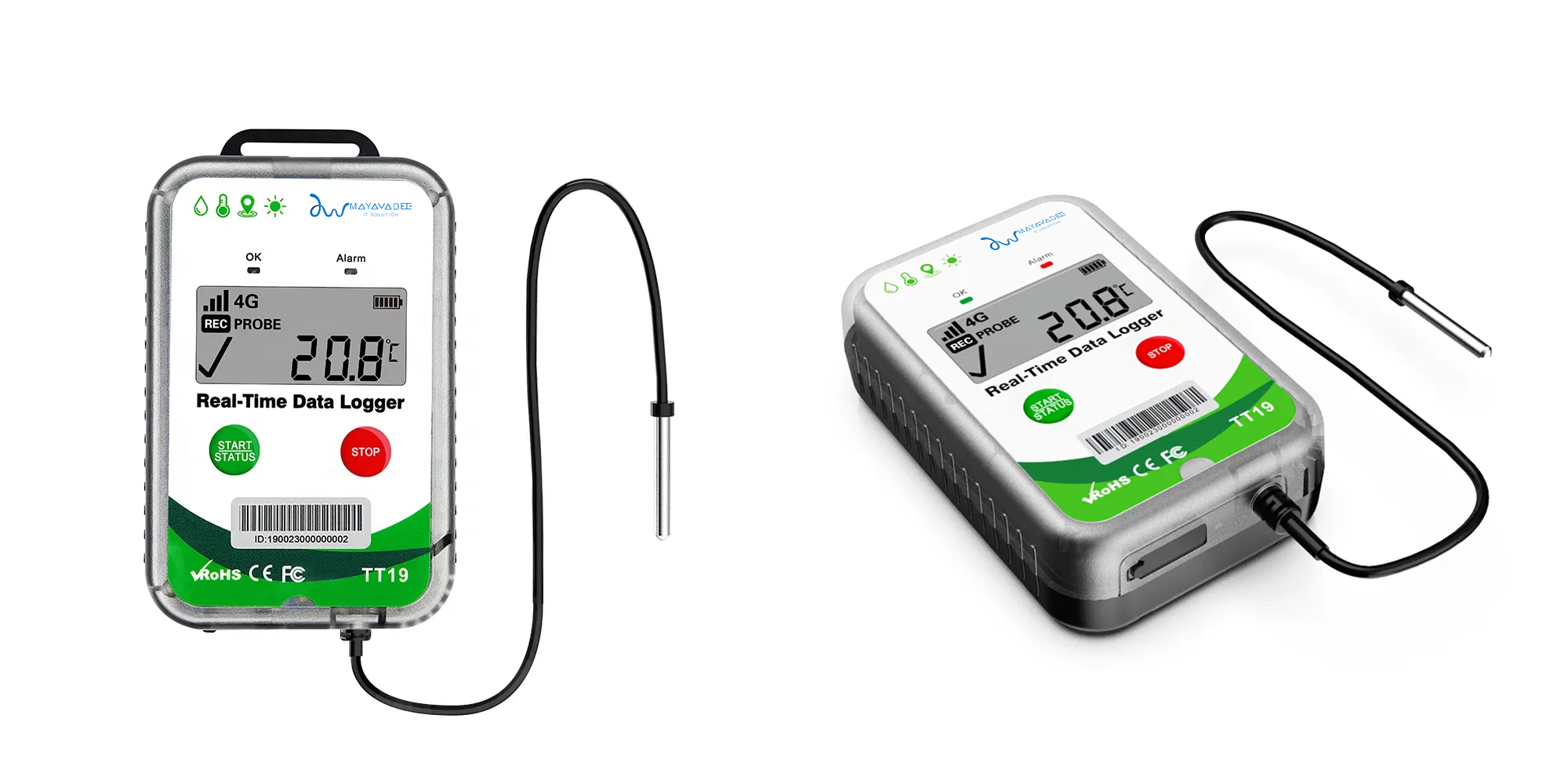

TT19EX 4G Real-Time Temperature and Humidity Data Logger
TT19EX
TT19EX

4G Real-Time Temperature and Humidity Data Logger

Model TT19EX
Monitoring information Temperature, humidity, location, light, vibration
Temperature and humidity sensor External PT100 probe + Built-in Sensirion SHT30
Temperature measurement range External temperature: -200℃~+200℃ (-328°F~392°F)
Built-in temperature: -30℃~+60℃ (-22°F~140°F)
Built-in humidity: 5%~95%RH
Temperature and humidity accuracy range External probe temperature: 0.15+0.002*| t |
Built-in temperature: ±0.3°C (0°C~+60°C); ±0.5°C for other range
Built-in humidity: ±3% (10%~90%RH); ±5% for other range
Light sensor range 0-64000lux
Vibration sensor range 0-16G
Minimum unit 0.1℃ / 0.1%RH / 1 lux / 0.001G
Position type GPS position, WiFi position, LBS base station position
Memory capacity 16,072
Network system Global LTE 4G, with 2G fallback
Recording interval Default 60min, configurable
Reporting interval Default 60min, configurable
Usage time Once fully charged, it can be used for 60 days based on reporting interval of 60 min and GPS turned on
USB interface USB-C
Usage type Multiuse + rechargeable
Waterproof level IP64
Dimension 100mm*66mm*29mm
Weight 175g
